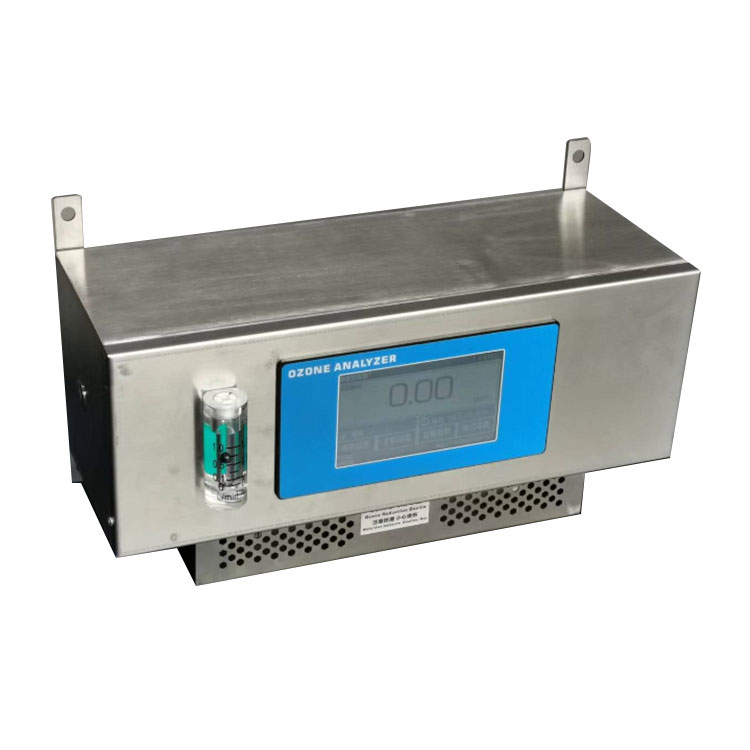

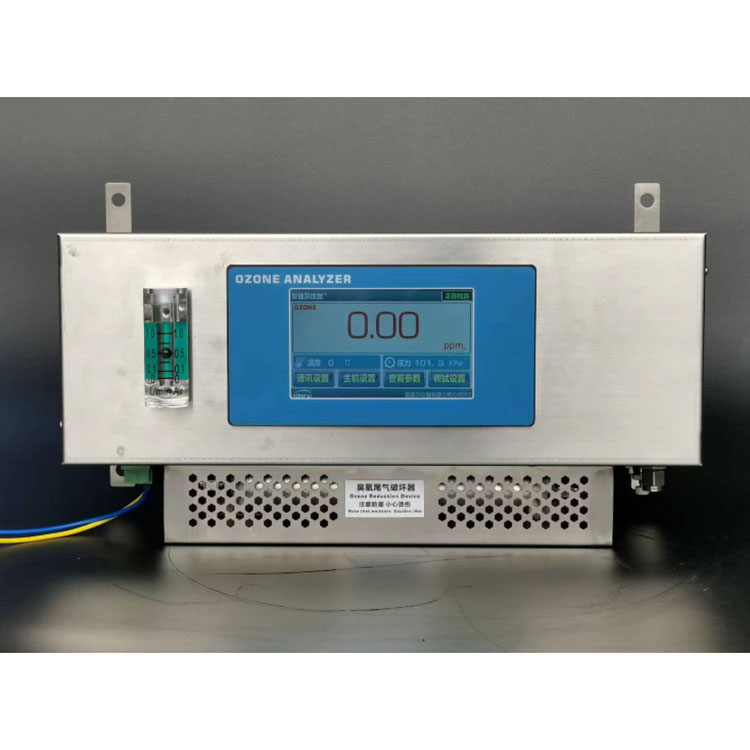

Wall-Mounted Ozone Gas Concentration Analyzer

Prinsipyo ng pagtuklas: Paraan ng pagsipsip ng Dual-Path ng UV, na ginagamit para sa real-time na pagtuklas ng konsentrasyon ng outlet ng ozone o pagtuklas ng konsentrasyon ng ozon na buntot.
Saklaw ng pagsukat: 0-100ppm; 0-1000ppm
Mga Tampok ng Produkto: Ang mga naka-mount na ozon na gas na konsentrasyon ng konsentrasyon ay maaaring tumakbo nang patuloy at awtomatikong i-calibrate upang matiyak ang katatagan ng konsentrasyon ng pagtuklas.

Magpadala ng Inquiry

The Wall-Mounted Ozone Gas Concentration Analyzer uses an advanced dual-path ultraviolet light source system, and is equipped with an intelligent lamp management system. After the machine is turned on, the ultraviolet lamp can quickly reach the measurement state. It adopts foreign separated light pool technology. The equipment has the characteristics of no leakage, high pressure resistance, resistance to large flow sampling gas impact, easy cleaning, convenient maintenance, simple operation, and low cost of use. It is mainly used for continuous detection of ozone gas in various industrial environments, and can also be used to detect ozone gas in running pipelines, containers and other environments. It is widely used in pharmaceutical, chemical, municipal, sewage treatment and other industries to measure the outlet concentration of ozone generators and the output of ozone generators.

The ozone analyzer has a touch screen operation interface, which displays the concentration of ozone gas in real time, has pressure and temperature compensation and display, and can set automatic zeroing time and manual zeroing mode. The core components use ultraviolet long-life light source system and high-transmittance quartz slices to ensure the stability of zero point and prevent zero drift from affecting the accuracy of detection concentration. The pressure-resistant and impact-resistant independent light pool structure designed according to foreign light pool technology keeps the gas flow, pressure and flow rate unchanged during zeroing operation to prevent airflow impact from affecting zeroing. Zeroing operation can be completed without shutting down the ozone intake, ensuring that the equipment can operate continuously 24 hours a day.

Application areas: ozone generator manufacturers, municipal water industry, industrial sewage industry, fine chemical industry, food and drinking water industry, space disinfection industry, swimming pool disinfection industry, flavor synthesis industry and other industries using ozone generators.

UVOZ-1100 ozone gas analyzer, with optional range and working mode

range	Sampling method	Application areas
0-1000ppm	Positive or negative pressure sampling, with pressure and temperature compensation	Real-time detection of ozone concentration in the box.
0-100ppm	Positive or negative pressure sampling, with pressure and temperature compensation	Real-time detection of ozone concentration in a space or room.

Product features:

Test method: dual-path ultraviolet absorption method, long-life light source system, high measurement accuracy.

Measurement principle: Based on the Lambert-Beer law, accurate measurement is performed through the principle of photometric absorption.

Light source system: Foreign long-life ultraviolet light source system, free warranty for 2 years.

Usage: Indoor installation and use, equipped with power supply and signal terminals.

Light pool system: Separate light pool technology, no leakage, high pressure resistance, and resistance to large flow sampling gas impact.

Intelligent compensation: built-in temperature and pressure compensation and display, with automatic light source compensation function.

Operation method: Users can choose manual zeroing and automatic zeroing according to the operating status, and can set the automatic zeroing time.

Display unit: ppm, mg/Nm3 optional.

Data display: high-definition color touch screen.

Output function: 4-20mA, RS485 communication, two sets of alarm point output, etc.

Standard configuration: ozone exhaust destroyer, air intake filter.

Modelo	Import-1100
Saklaw ng Pagsukat	0-100ppm;
Opsyonal na saklaw	0-1000ppm;
Banayad na mapagkukunan ng buhay	mga 20000-30000 oras;
Paraan ng Sampling	negatibong pressure sampling;
Ipakita ang interface	4.3-inch touch screen operation interface;
Interface ng nilalaman	konsentrasyon ng osono, temperatura, presyon;
Mga Pag -andar ng Auxiliary	kabayaran sa temperatura, kabayaran sa presyon;
Display Unit	PPM, MG/NM3 Opsyonal;
Display Resolution	0.01ppm;
Sampling daloy ng gas	500ml/min;
Presyon ng input	presyon ng atmospheric 101kpa;
Error sa konsentrasyon	Maximum na 0.3%FS (Intermittent zero sampling);
Error sa pagkakasunud -sunod	Maximum na 0.3%FS (Intermittent calibration zero sampling);
Zero Drift	<± 0.3%.fs;
Oras ng pagtugon	Signal 0.03 segundo, ipakita ang data minsan bawat 5 segundo (intermittent calibration zero sampling);
Nakapaligid na temperatura	-20 ～ 50 ℃;
Piping interface	Pagoda Connector, (Luer Connector Inlet Filter) ;.
Bypass sampling caliber	Φ6 (6mm*4mm);
Mode ng komunikasyon	RS-485;
Mode ng output	4-20mA (aktibo);
Signal ng relay	Mataas na signal ng relay ng alarm point, mababang signal ng relay ng alarma;
Power Supply	24V DC;
Sukat	160mm (h) x 330mm (w) x 110mm (d).
